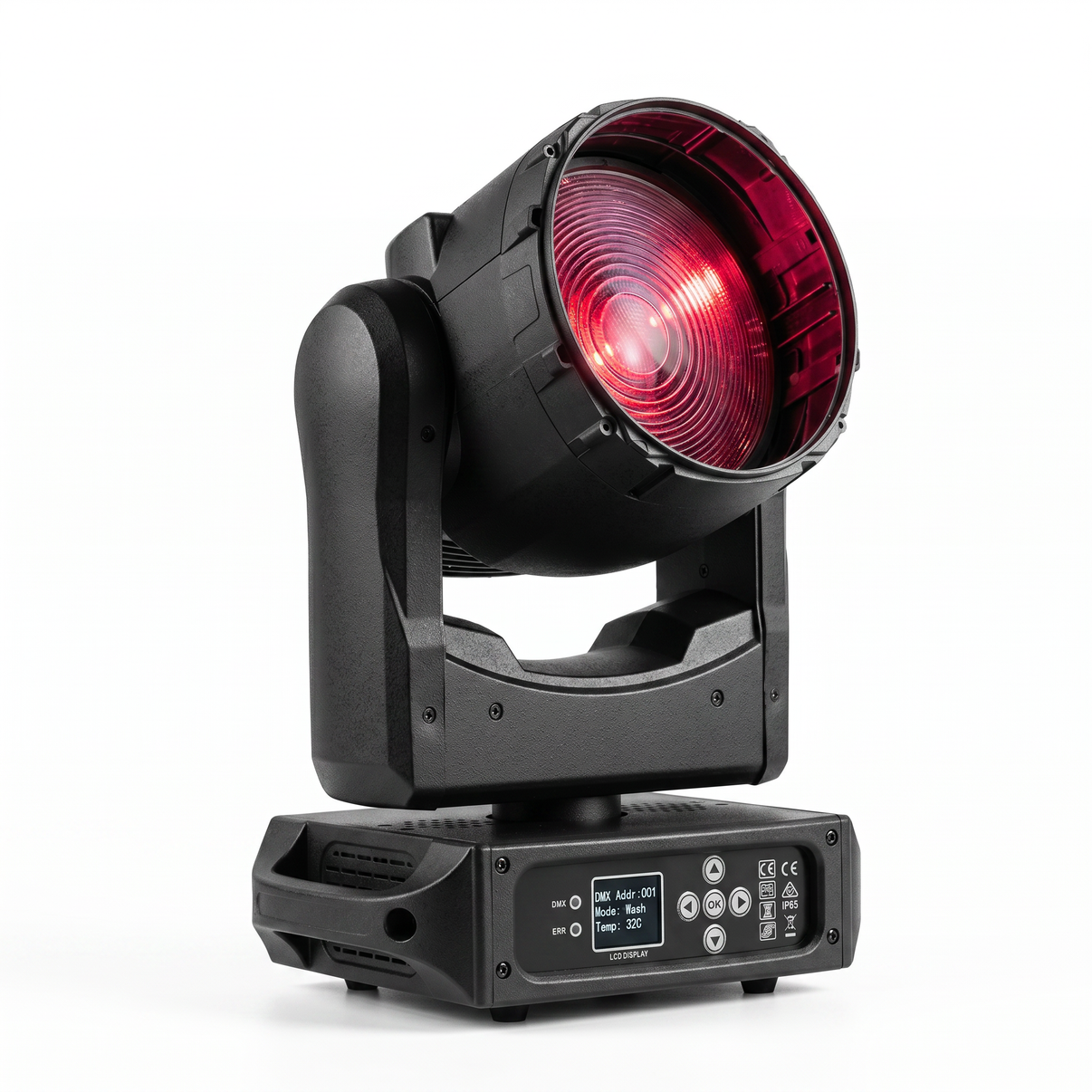

XNK SPL-641 wash moving head

XNK SPL-641 wash moving head is designed for stage shows, mobile DJs, clubs, and event production. XNK SPL-641 wash moving head combines beam effects, wash coverage, color wash output, zoom functionality for dependable performance lighting and live event use. Review the technical specifications below for setup, control, and fixture details.

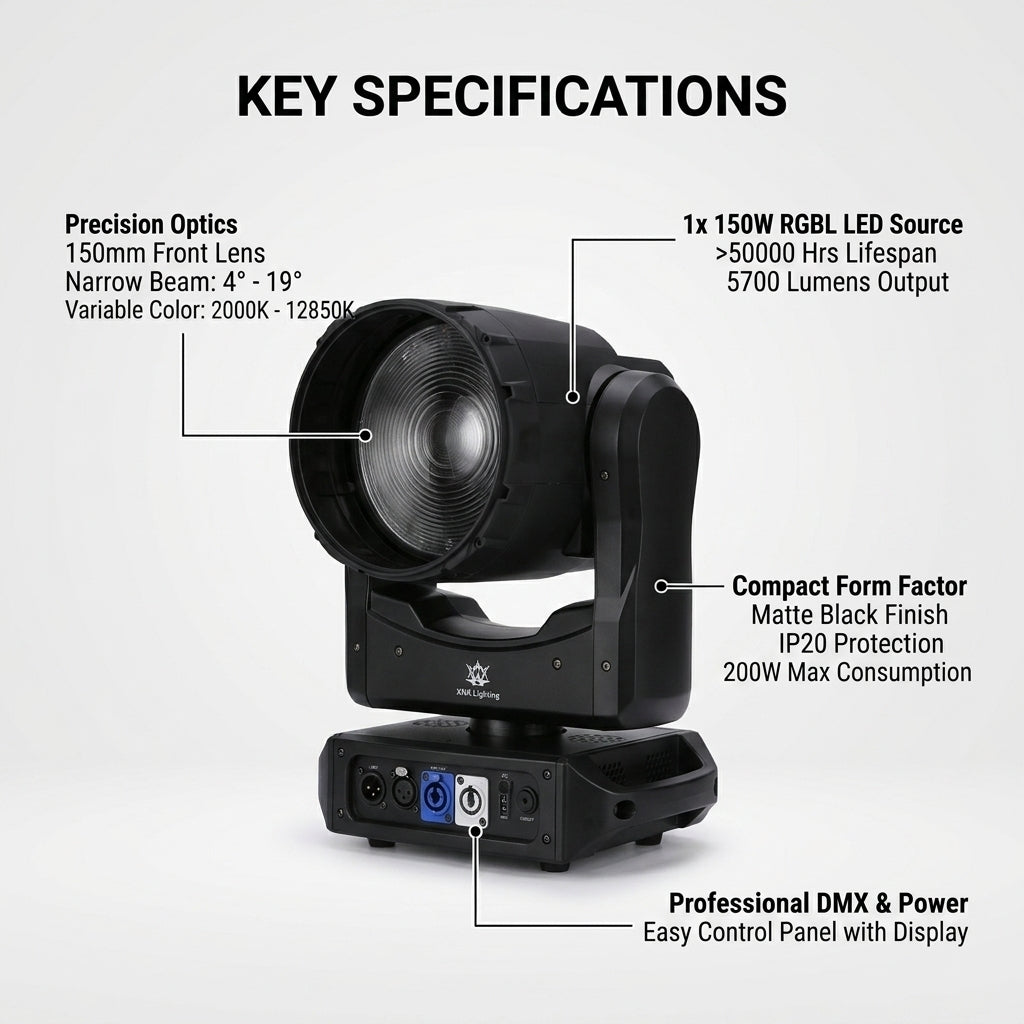

Technical Parameters

AC Power Supply: AC100V～240V 50/60Hz
Maximum Power Consumption: 200 W
Luminous Flux Output of Light Source Engine: 5700 lumens
Wide-beam Luminous Flux Output of Bulb: 2500 lumens
Narrow-beam Luminous Flux Output of Bulb: 1900 lumens
Color Temperature: Variable 2000K - 12850K (±200K)
Front Lens Diameter: 150 mm (5.91 inches)

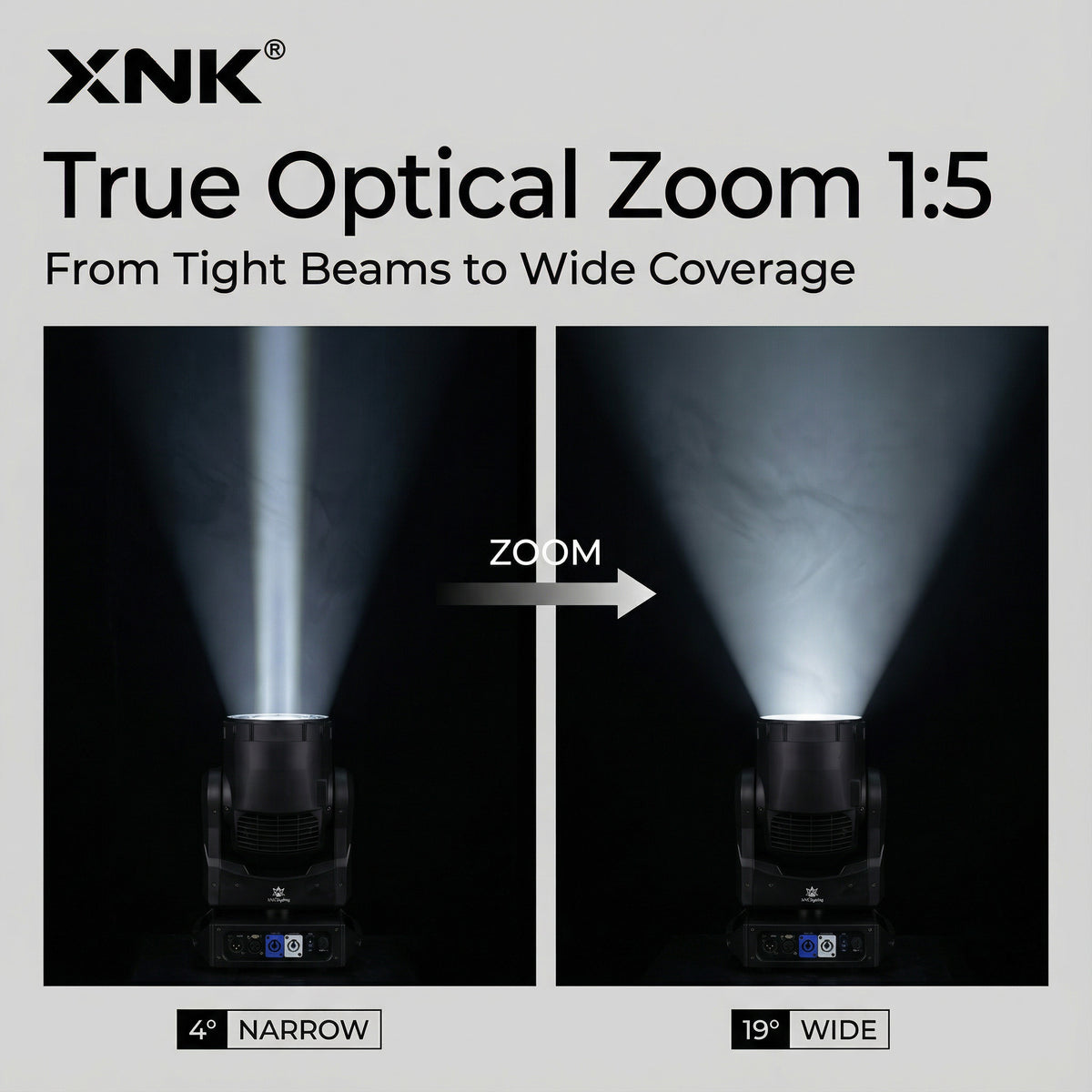

Zoom Range: 1:5
Full Zoom Range at Half-peak (Beam Angle): 4° - 19°
Full Zoom Range at Tenth-peak (Field of View): 6° - 27°
Beam Light Source: 1 x 150 W RGBL LED
Backlight: 24 x 0.25 W RGB LED
Maximum Total Beam LED Engine Power: 120 W
Maximum Total Backlight LED Engine Power: 6 W
Minimum LED Lifespan: > 50000 hours (> 70% luminous flux output)
The internally customized 120 W RGBL (Red, Green, Blue, Lime) LED delivers higher light quality (Color Rendering Index, TM-30, TLCI) than RGBW LEDs.
Lumen Output: 2500 lumens
Color: Black
Protection Class: IP20
