PRODUCT OVERVIEW
XNK SPL-633 18x10w RGBWA-UV 6in1 led wall wash IP65
XNK SPL-633 18x10w RGBWA-UV 6in1 led wall wash IP65 is designed for stage shows, mobile DJs, clubs, and event production. XNK SPL-633 18x10w RGBWA-UV 6in1 led wall wash IP65 combines DMX control, waterproof housing, wash coverage, strobe effects for dependable performance lighting and live event use. Review the technical specifications below for setup, control, and fixture details.Product specificationsInput Volta...
Share the model, quantity, application and destination for a focused response.
PRODUCT DETAILS
Built for a considered specification review.
XNK SPL-633 18x10w RGBWA-UV 6in1 led wall wash IP65 is designed for stage shows, mobile DJs, clubs, and event production. XNK SPL-633 18x10w RGBWA-UV 6in1 led wall wash IP65 combines DMX control, waterproof housing, wash coverage, strobe effects for dependable performance lighting and live event use. Review the technical specifications below for setup, control, and fixture details.
Product specifications
Input Voltage:AC100-240V, 50/60Hz
Power consumption : 200W
Light source: 18pcs*10W RGBWY+UV
Electrical dimming：0%~100% linear dimming
Electrical strobe: 1S/24HZ(Multiple strobe effects)
Display:LED display
Control mode: DMX512/AUTO/RDM
DMX Channels: 8/12/38/48CH
Software can be updated through the DMX
DMX Connection: IP65 3-Pins XLR input and output
Power connection: IP65PowerCon In/out
Top and bottom splicing: Maximum splicing 10 units
Left and right splicing: Maximum splicing 8units
IP Rate: IP65
Max. Operating ambient temperature: 45°
Cooling method:Convention cooling
Product size: 310mm (12.2")x150mm (5.9")x187mm (7.4")(LxWxH)
N.W: 4.5Kg (9.92 lbs)

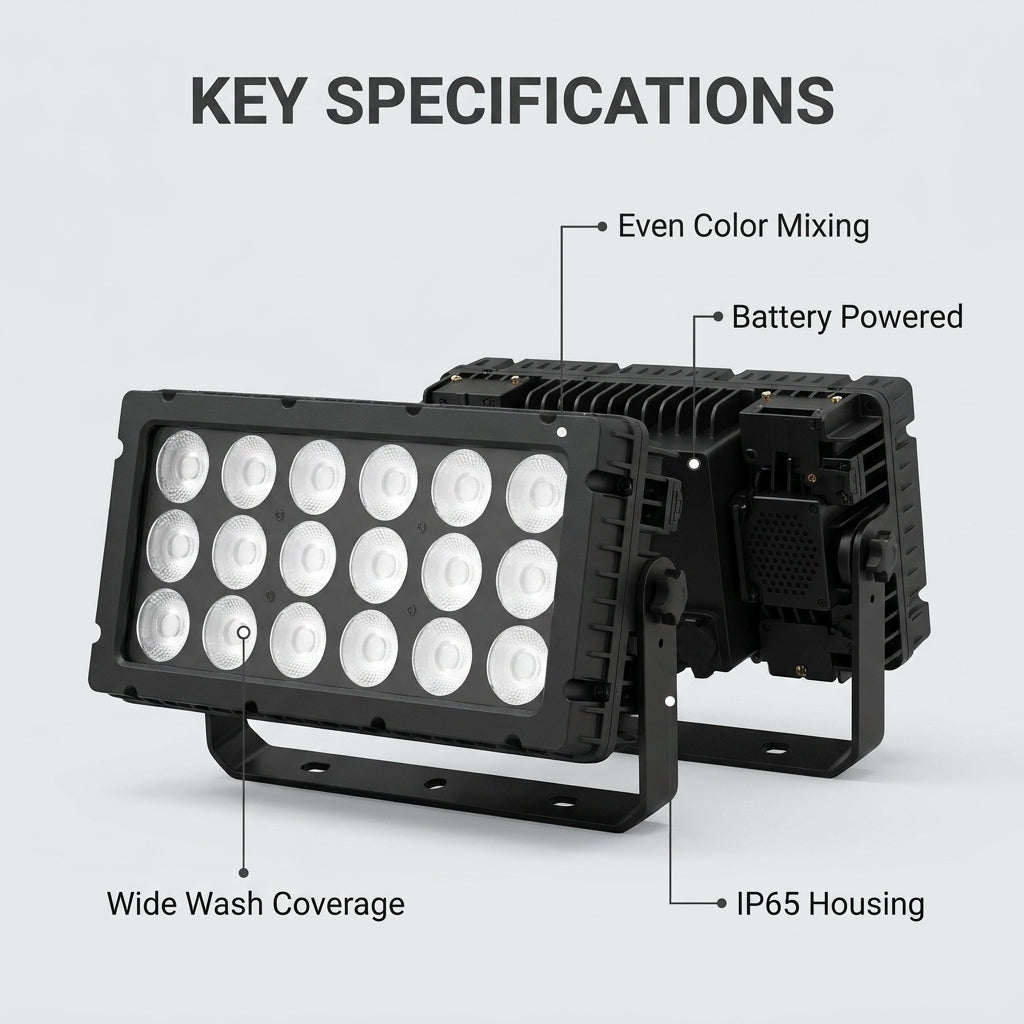

KEY SPECIFICATIONS
Reference information
- Brand
- XNK Stage Lighting
EXPERT SUPPORT
Need help with this model?
Talk to an XNK lighting specialist about application, quantity or project requirements.
