PRODUCT OVERVIEW

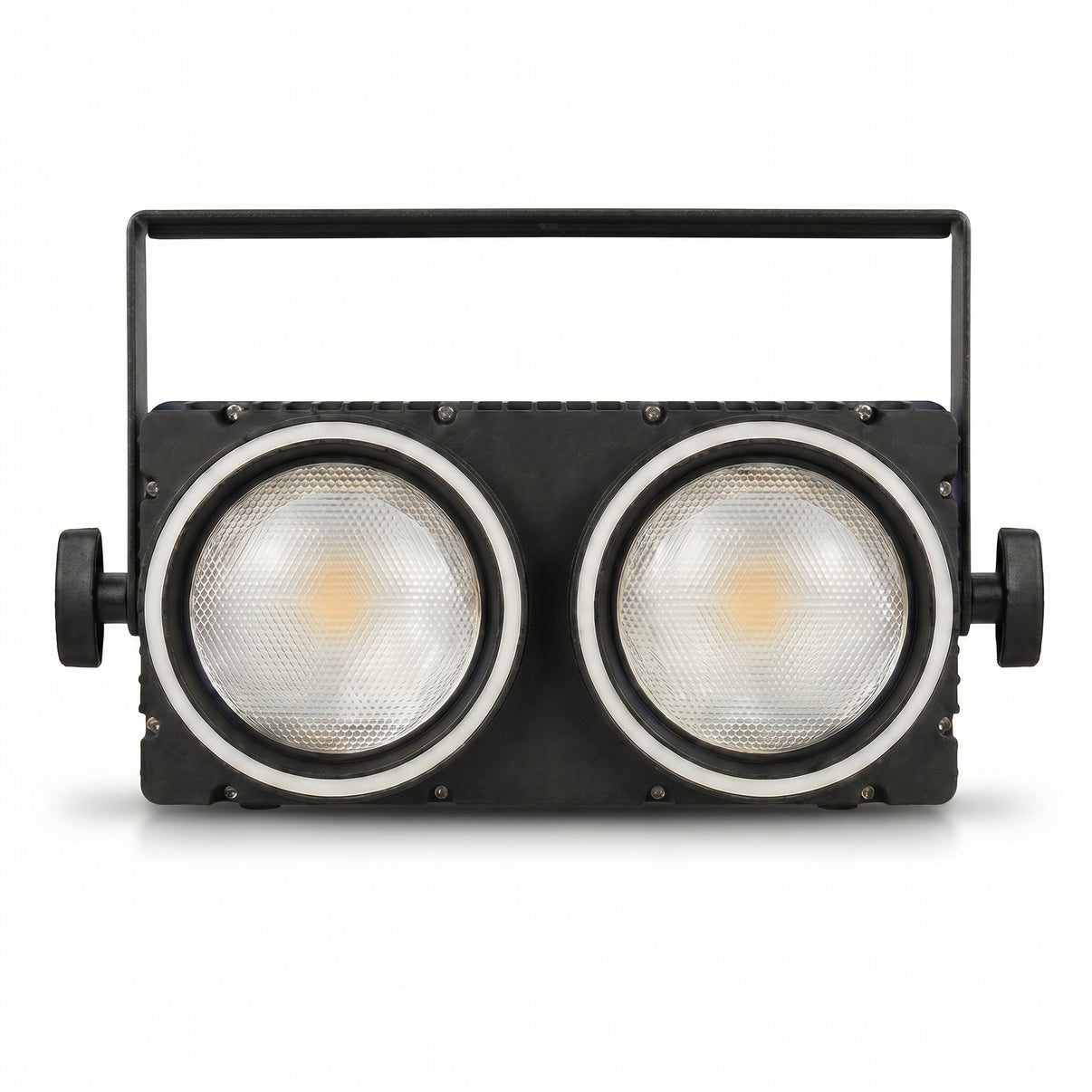

XNK SPL-630 Waterproof two eyes blinder
XNK SPL-630 Waterproof two eyes blinder is designed for stage shows, mobile DJs, clubs, and event production. XNK SPL-630 Waterproof two eyes blinder combines DMX control, waterproof housing, panel illumination, blinder output for dependable performance lighting and live event use. Review the technical specifications below for setup, control, and fixture details.Input Voltage:AC100-240V, 50/60HzPower consumption :...
Share the model, quantity, application and destination for a focused response.
PRODUCT DETAILS
Built for a considered specification review.
XNK SPL-630 Waterproof two eyes blinder is designed for stage shows, mobile DJs, clubs, and event production. XNK SPL-630 Waterproof two eyes blinder combines DMX control, waterproof housing, panel illumination, blinder output for dependable performance lighting and live event use. Review the technical specifications below for setup, control, and fixture details.
Input Voltage:AC100-240V, 50/60Hz
Power consumption : 220W
Light source: 2*100W dual-color
Auxiliary lighting: 18 5054 LED beads RGBA
Halo: 48 5050 LED beads in RGB
Dimming: 0-100% linear dimming
Stroboscopic effect: 11/25 (with multiple built-in stroboscopic effects)
Control panel: Digital tube
Control protocol: DMX512/Auto/RDM
Channel mode： 8CH/13CH/19CH/20CH/26CH/28CH
Software upgrade: Connect to DMX to upgrade the software
Signal input/output: Three-core waterproof Canon socket
Power socket: Waterproof power connector input/output
Top and bottom splicing: The maximum splicing capacity is 10 units
Left and right splicing: The maximum splicing capacity is 8 units
Protection grade: IP65
Maximum operating ambient temperature: 45°
Product size: 310 mm (12.2")x150 mm (5.9")x187 mm (7.36")(L*W*H)
N.W: 4.3Kg (9.04 lbs):

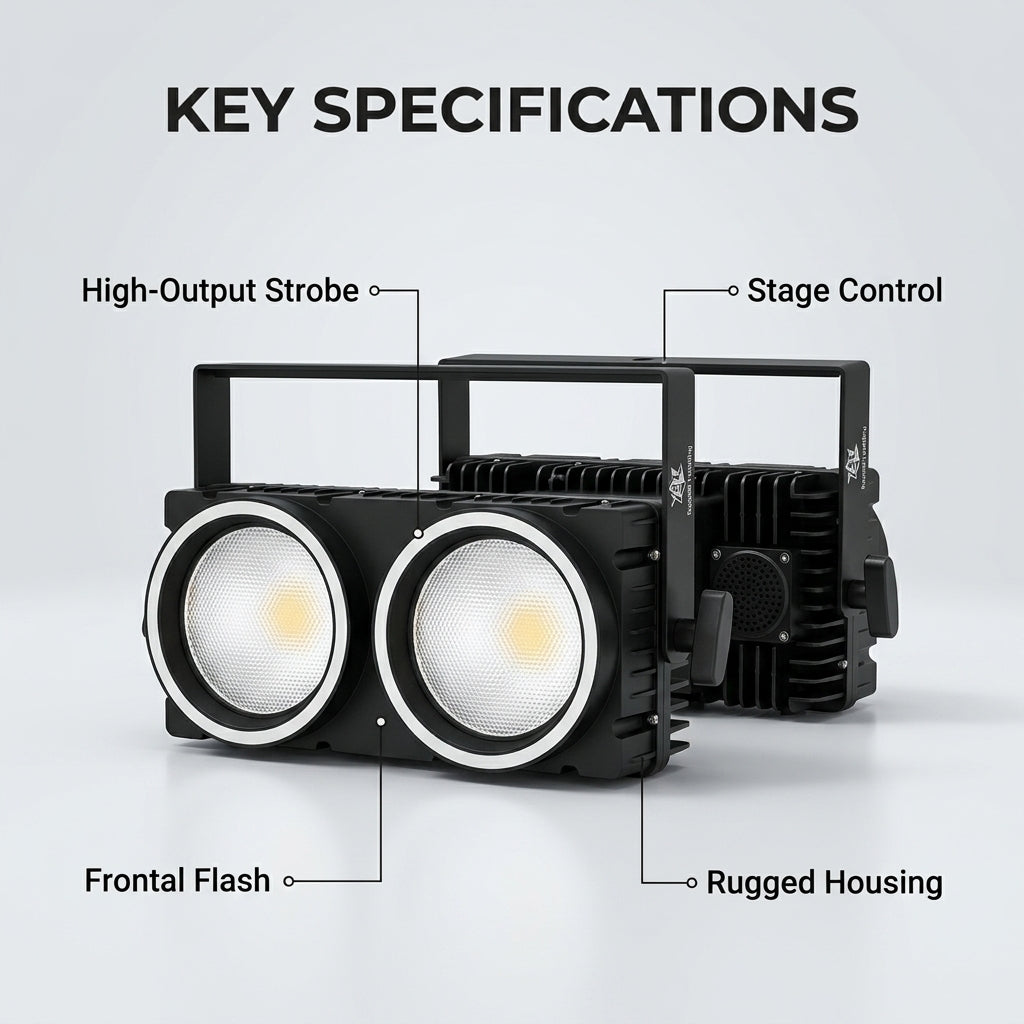

KEY SPECIFICATIONS
Reference information
- Brand
- XNK Stage Lighting
