PRODUCT OVERVIEW

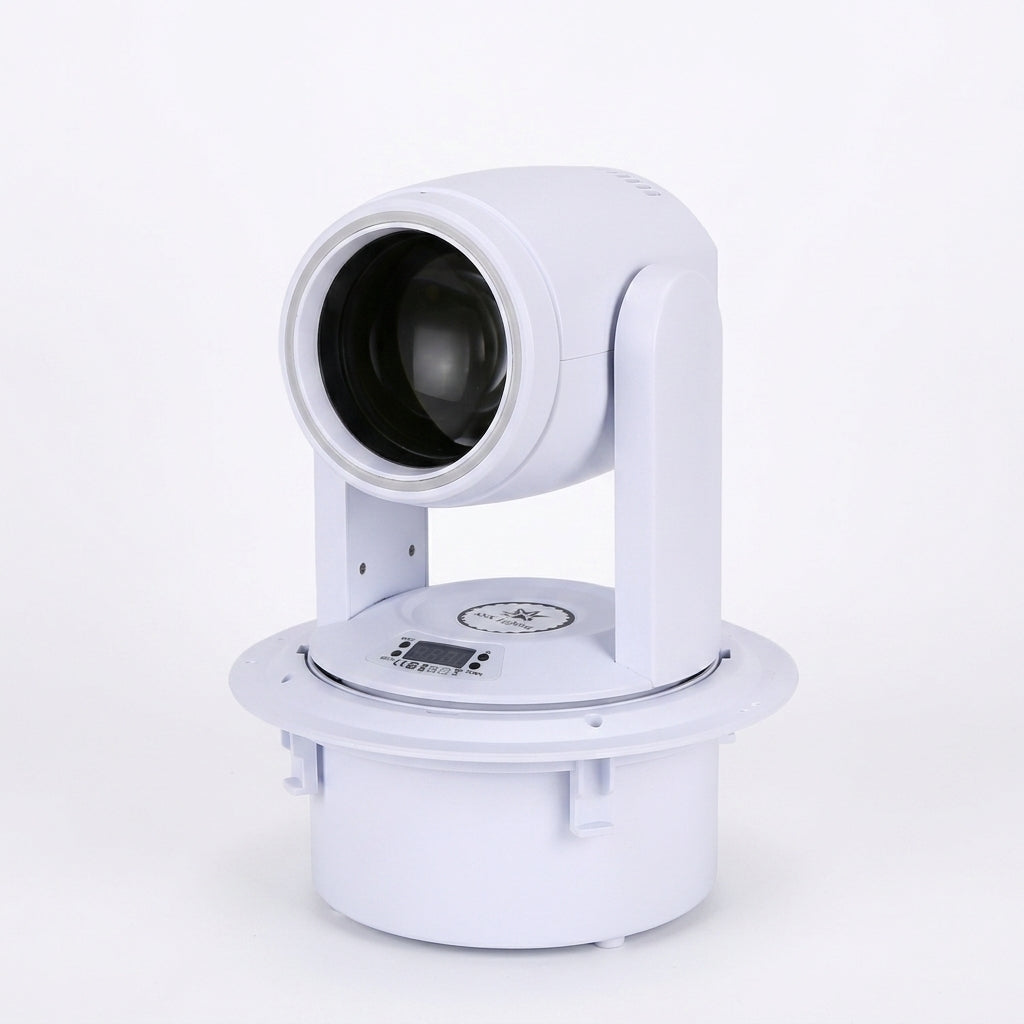

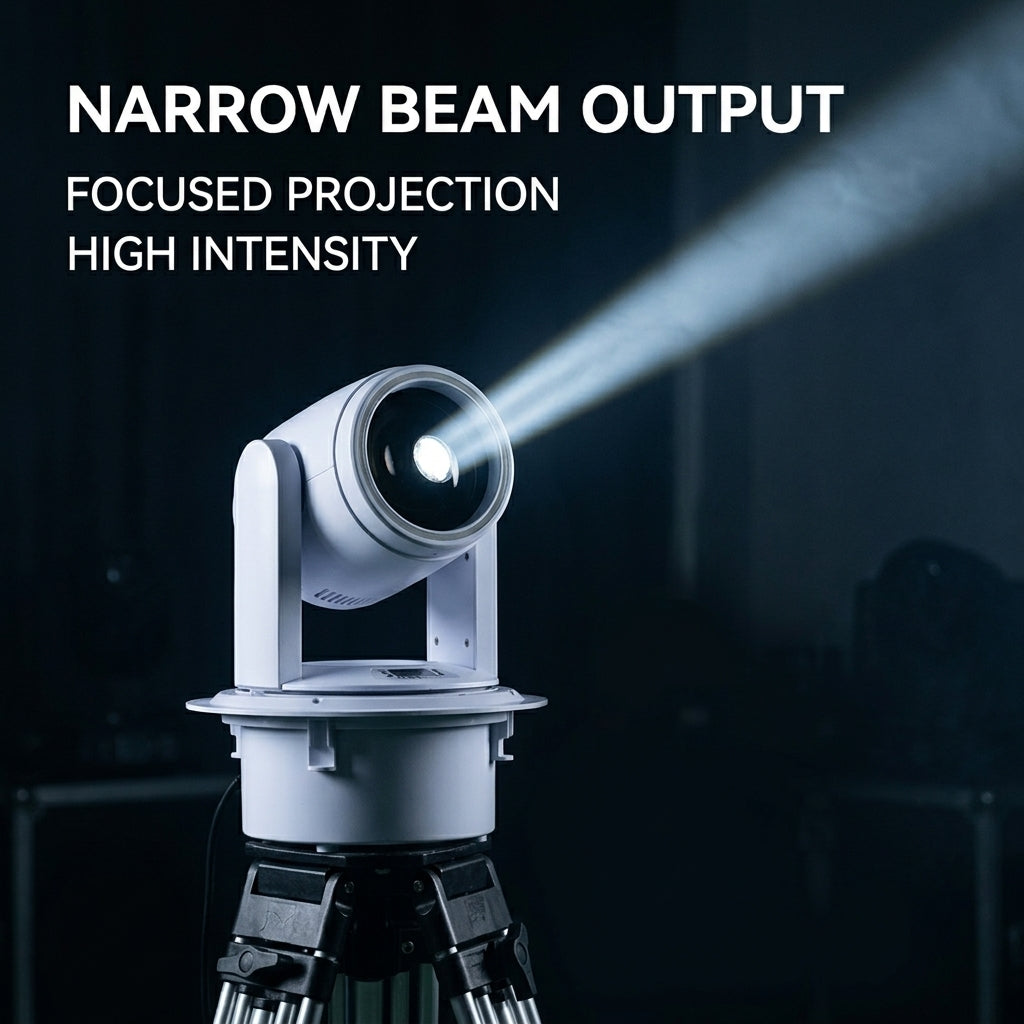

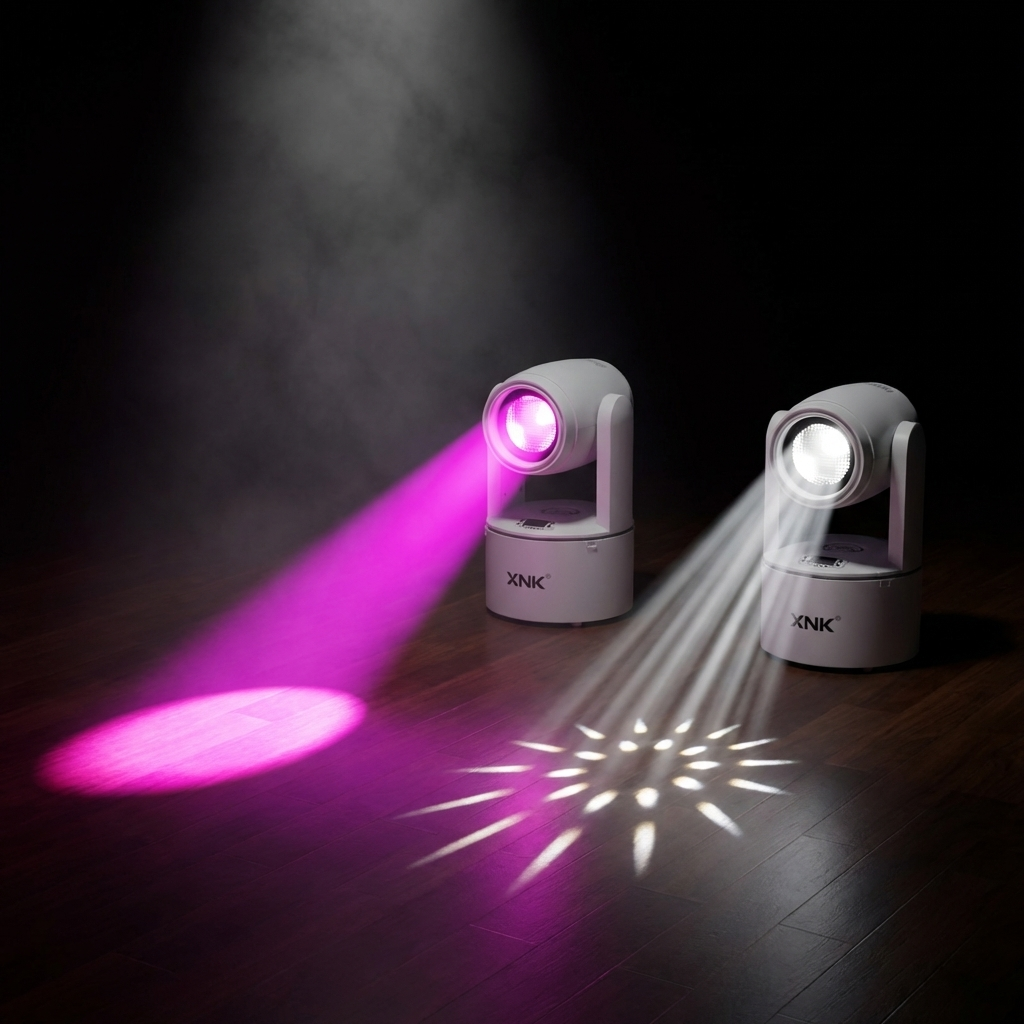

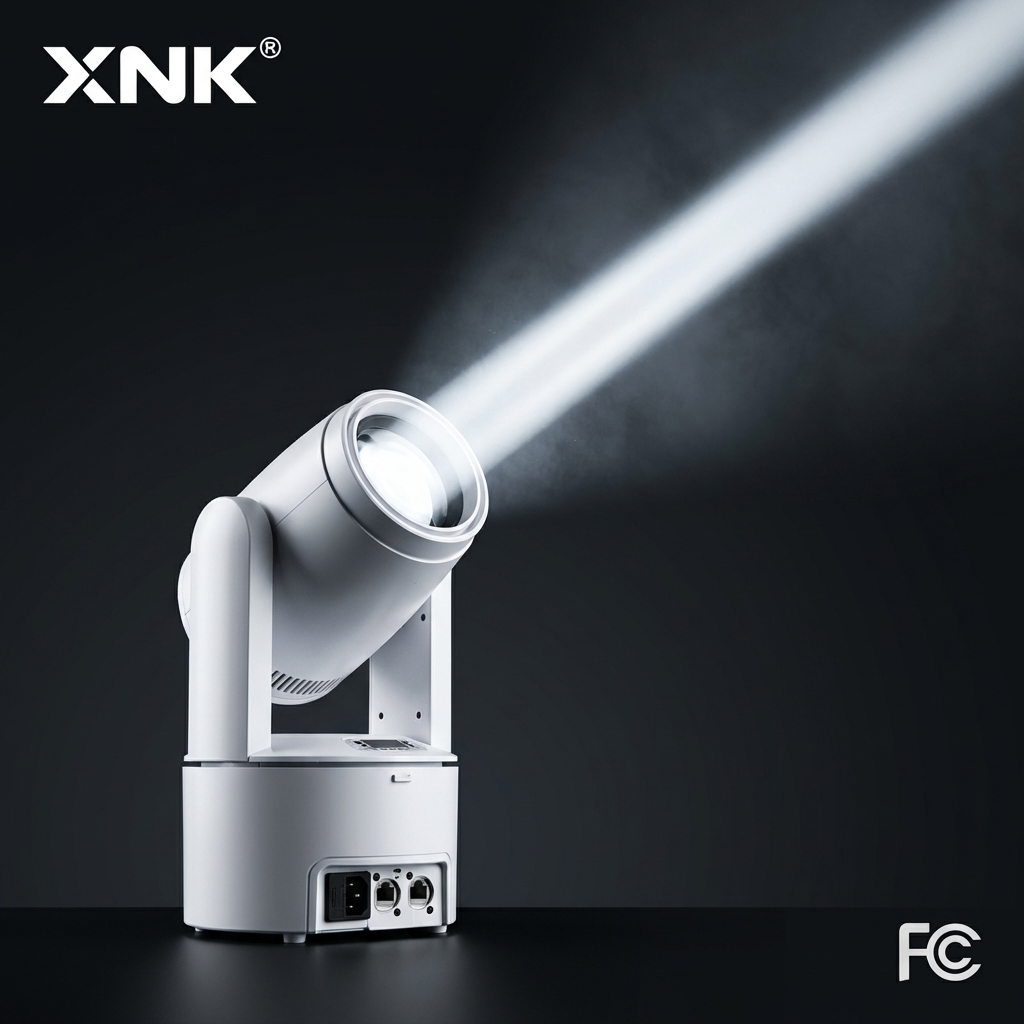

XNK SPL-616 100w beam moving head
XNK SPL-616 100w beam moving head is designed for stage shows, mobile DJs, clubs, and event production. XNK SPL-616 100w beam moving head combines DMX control, beam effects, strobe effects, color wash output for dependable performance lighting and live event use. Review the technical specifications below for setup, control, and fixture details.Product specificationsVoltage:AC100-240V, 50/60HzPower consumption : 11...
Share the model, quantity, application and destination for a focused response.
PRODUCT DETAILS
Built for a considered specification review.
XNK SPL-616 100w beam moving head is designed for stage shows, mobile DJs, clubs, and event production. XNK SPL-616 100w beam moving head combines DMX control, beam effects, strobe effects, color wash output for dependable performance lighting and live event use. Review the technical specifications below for setup, control, and fixture details.
Product specifications
Voltage:AC100-240V, 50/60Hz
Power consumption : 110 W
Light source: 80w led
Beam angle: 2.7˚
Electrical dimming：0%~100%
Electrical strobe: 1~25Hz
Pan:540°(16bit)
Tilt:270°(16bit)
Gobo wheel: 7 gobos+white
Color wheel: 7 colors+open, rainbow effect
Prism : 6+12-facet prisms, separate rotating
LED Display
Control mode: DMX512/Auto/Sound/Master-slave
14 DMX Channels

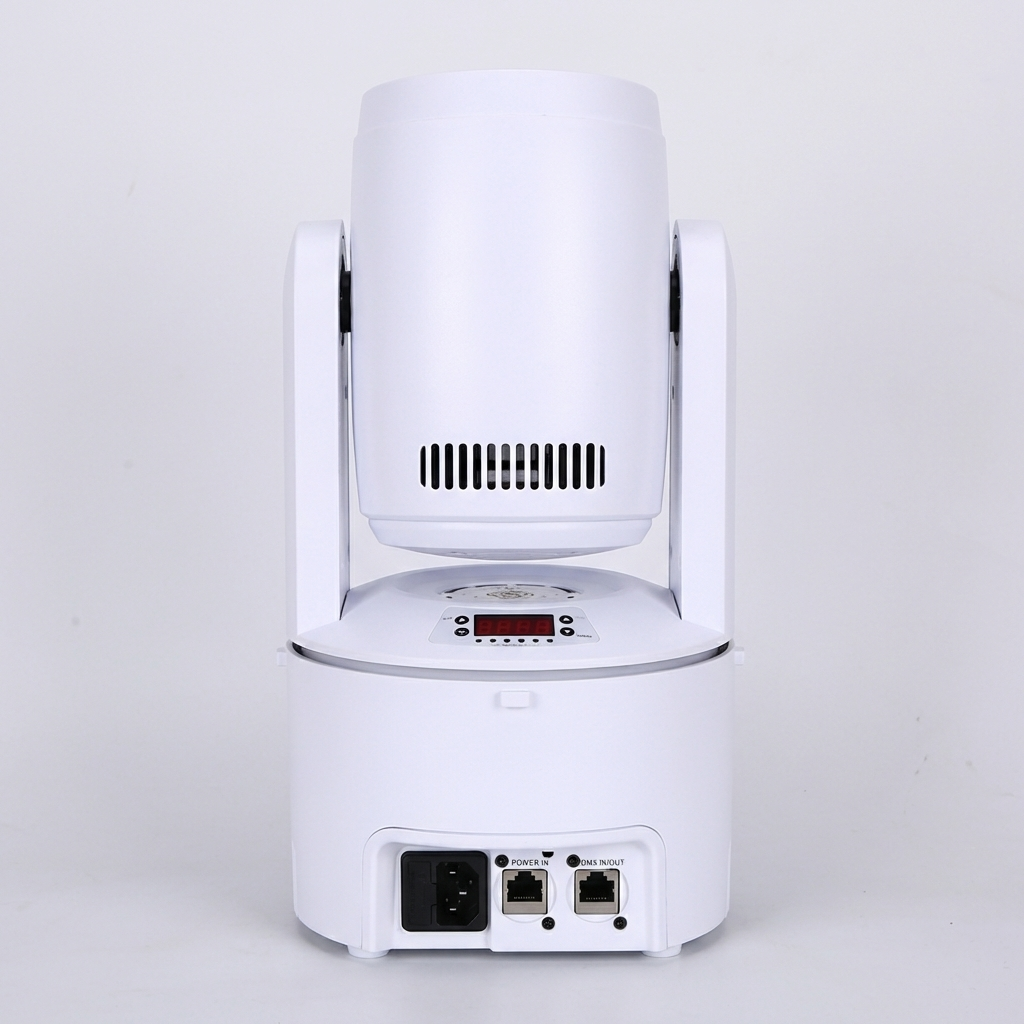

DMX Connection: RJ45
Power connection: IEC In
IP Rate: IP20
Max. Operating ambient temp: 45°
Product size: 195.2 mm (7.68")x195.2 mm (7.68")x350.2 mm (13.78")(LxWxH)
N.W: 3.8Kg (8.37 lbs)

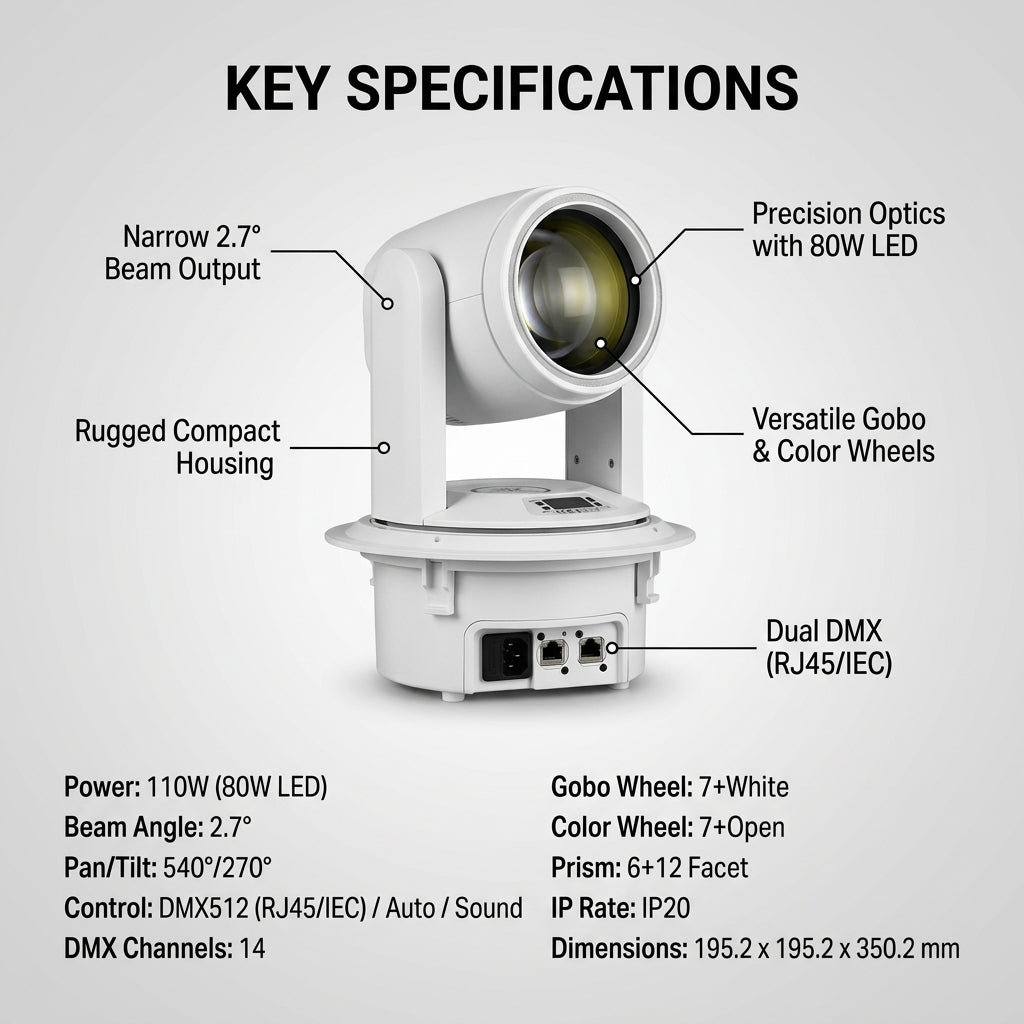

KEY SPECIFICATIONS
Reference information
- Brand
- XNK Stage Lighting
