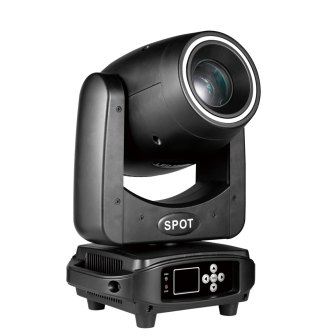

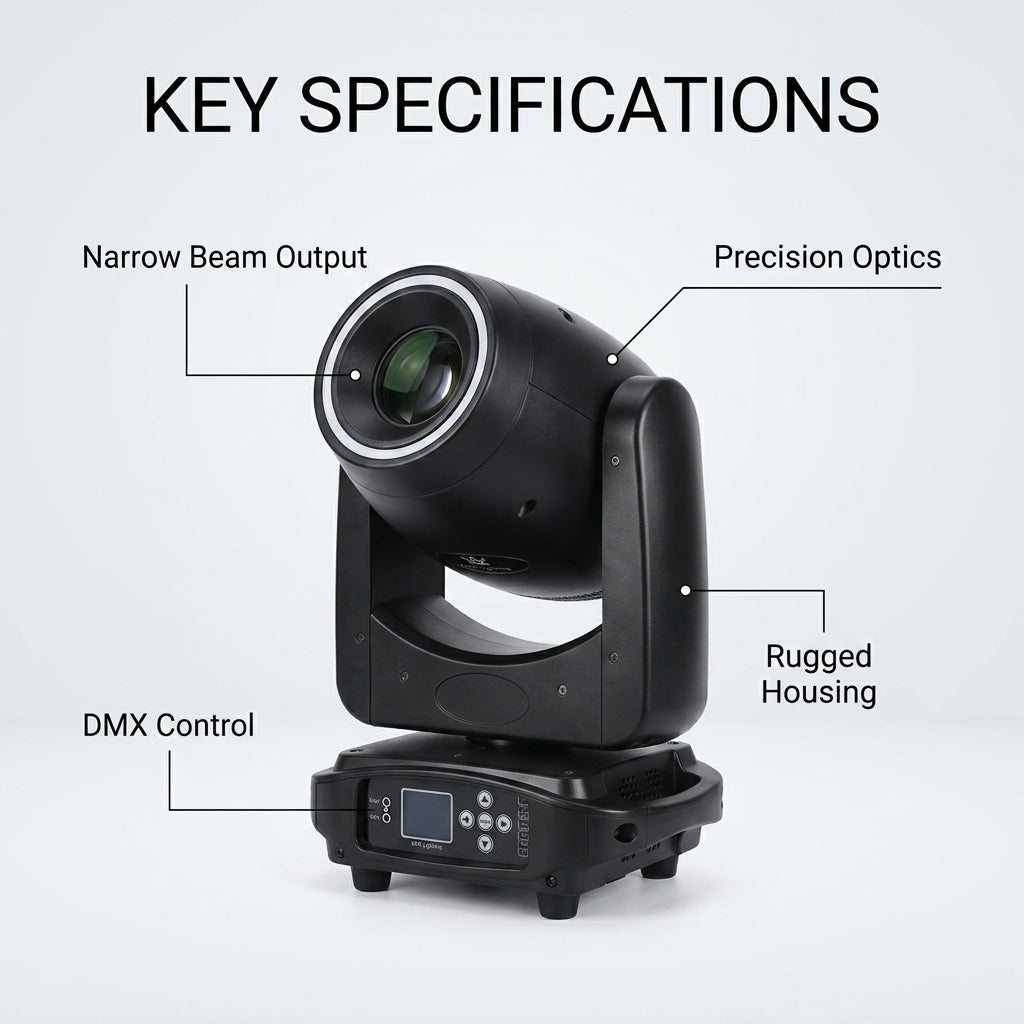

XNK SPL-515 led spot moving head

XNK SPL-515 led spot moving head is designed for stage shows, mobile DJs, clubs, and event production. XNK SPL-515 led spot moving head combines DMX control, beam effects, spot projection, strobe effects for dependable performance lighting and live event use. Review the technical specifications below for setup, control, and fixture details.

◆Technical Parameters

Rated voltage: AC100V～240V 50/60Hz

Light source: 200W white LED

Average life: 20,000h,

Color temperature: 9000K

LED light ring: 29pcs LED 3in1 high-brightness lamps, with built-in multiple horse racing effect programs, which can run simultaneously from the master and slave of the console

Beam angle: zoom 0°～5°, 14°

Color wheel with macro function: 7 colors + white

Static Gobo wheel: 7 gobos + white

Rotating Gobo Wheel: 6 gobos + white

Prism: 6+12 double-layer prism)

Zoom: DMX linear zoom, with automatic zoom function

Strobe, 0.3~25 times/second

Dimming: Electronic dimming 0~100% linear adjustment

Pan: 540°, tilt: 270°

Pan/tilt resolution: 8/16 bit

DMX channel: 22CH standard

Control mode, standard DMX512 protocol, RDM protocol

DMX DATA IN/OUT 3pin XLR

Sleep function: Using advanced technology to achieve remote sleep function, the lamp automatically enters sleep state when the signal is disconnected, making the lamp more stable and safer

Display function: 1.77-inch LCD display, Chinese and English bilingual menu

Cooling system: using light aluminum radiator, fan intelligent monitoring technology

Automatically adjust the fan rotation speed according to the temperature of the lamp

IP Rate: IP20

Packing size: 42*30.5*30CM

Net weight: 6.75KG

Gross weight: 7.4KG
