PRODUCT OVERVIEW

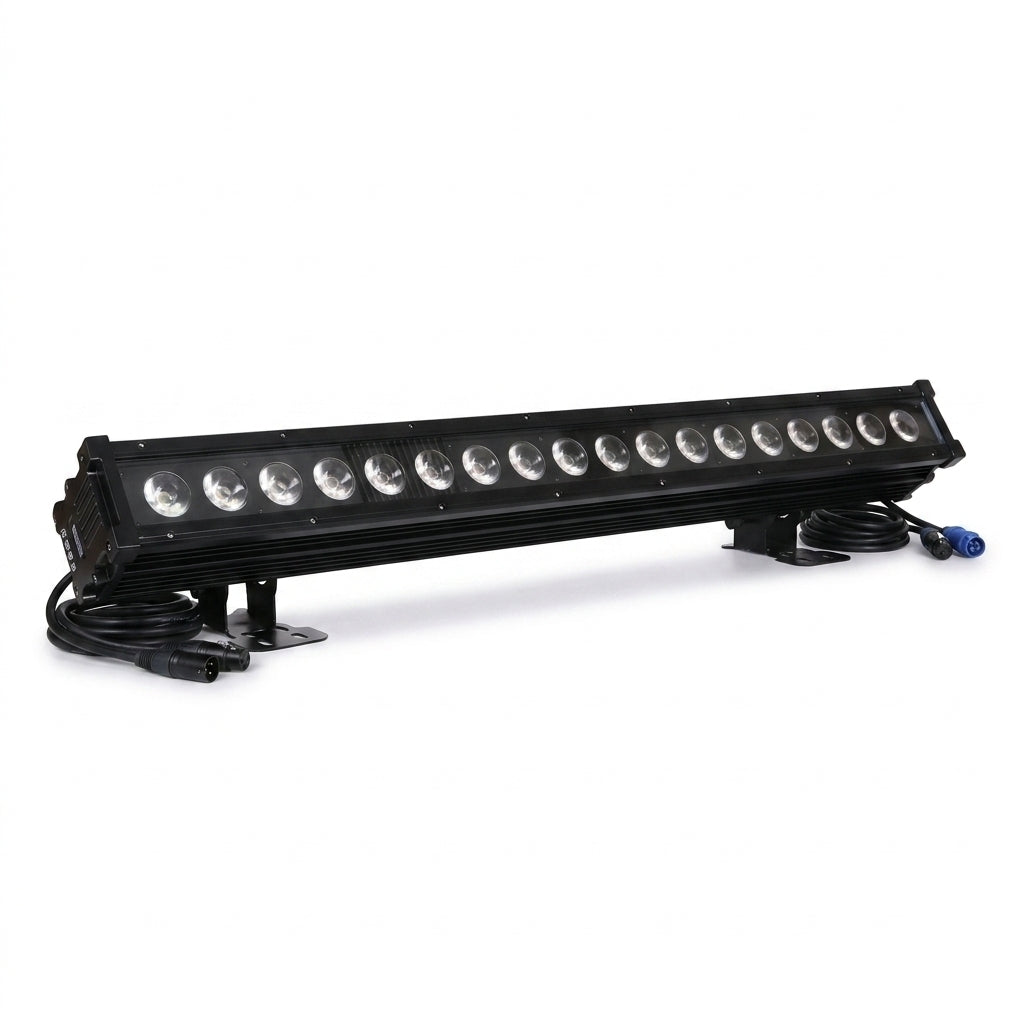

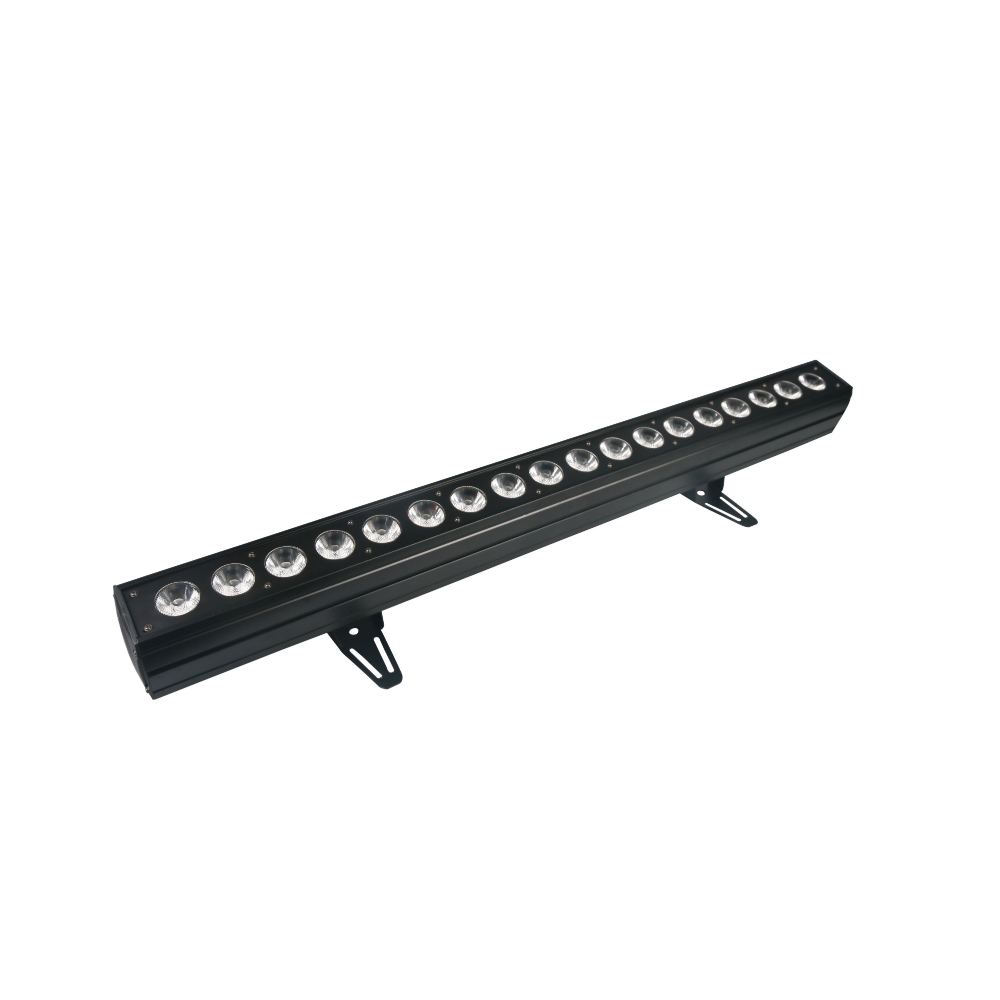

XNK SPL-623 RGBWA-UV LED Wall washe

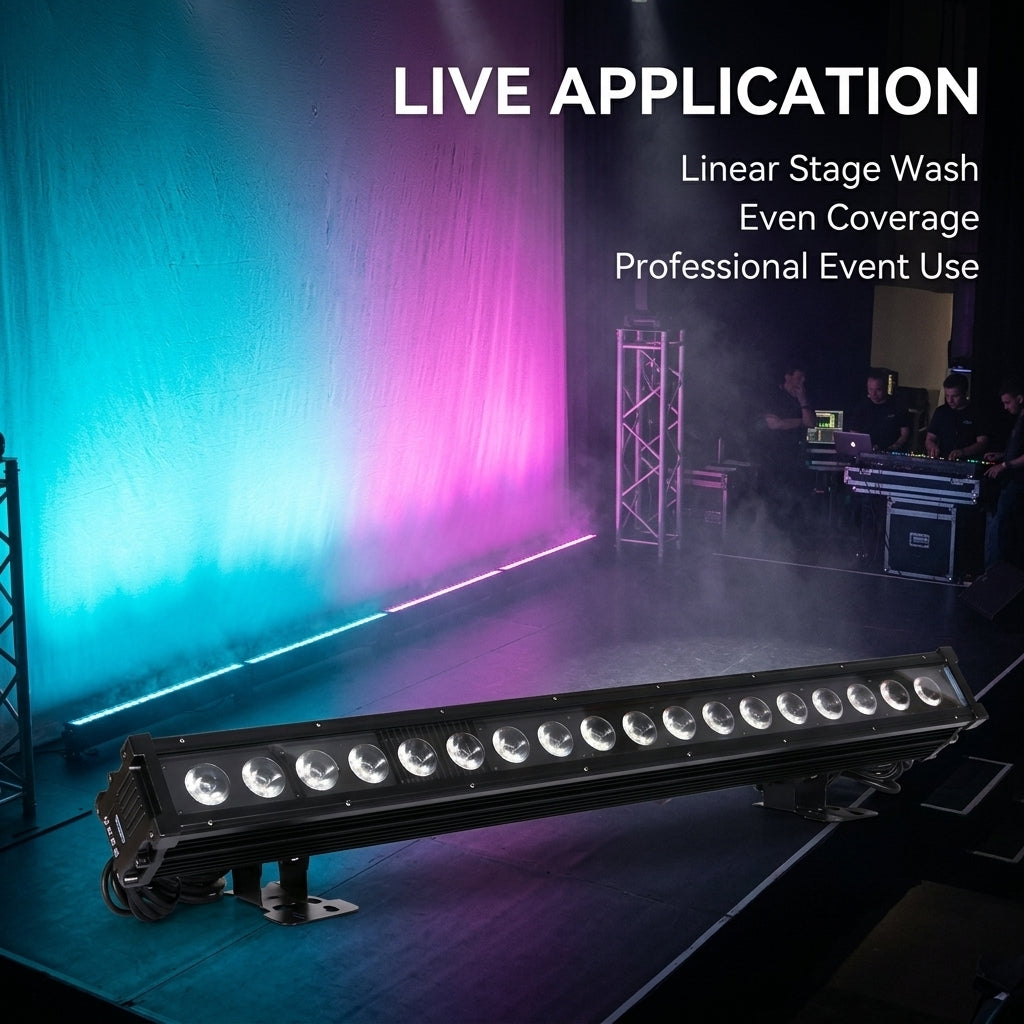

XNK SPL-623 RGBWA-UV LED Wall washe is designed for stage shows, mobile DJs, clubs, and event production. XNK SPL-623 RGBWA-UV LED Wall washe combines DMX control, beam effects, wash coverage, strobe effects for dependable performance lighting and live event use. Review the technical specifications below for setup, control, and fixture details. TECHNICAL SPECIFICATION ELECTRICALImput power: AC100-240VPower freque...
Share the model, quantity, application and destination for a focused response.
PRODUCT DETAILS
Built for a considered specification review.
XNK SPL-623 RGBWA-UV LED Wall washe is designed for stage shows, mobile DJs, clubs, and event production. XNK SPL-623 RGBWA-UV LED Wall washe combines DMX control, beam effects, wash coverage, strobe effects for dependable performance lighting and live event use. Review the technical specifications below for setup, control, and fixture details.
TECHNICAL SPECIFICATION
ELECTRICAL
Imput power: AC100-240V
Power frequency: 5060Hz
Power: 133W
LICHT SOURCE
Source: 18x10W RGBWA-UV LED
Average lifespan:50,000 hours
COLOR SYSTEM
Color : RGBWA-UV
ELECTRONIC
Linear dimming: 0-100%6 Linear
Dimmer Strobe: 1-25Hz
OPTICS
Beam Angle:15
Cooling method: fan cool
DYNAMICEFFECTS

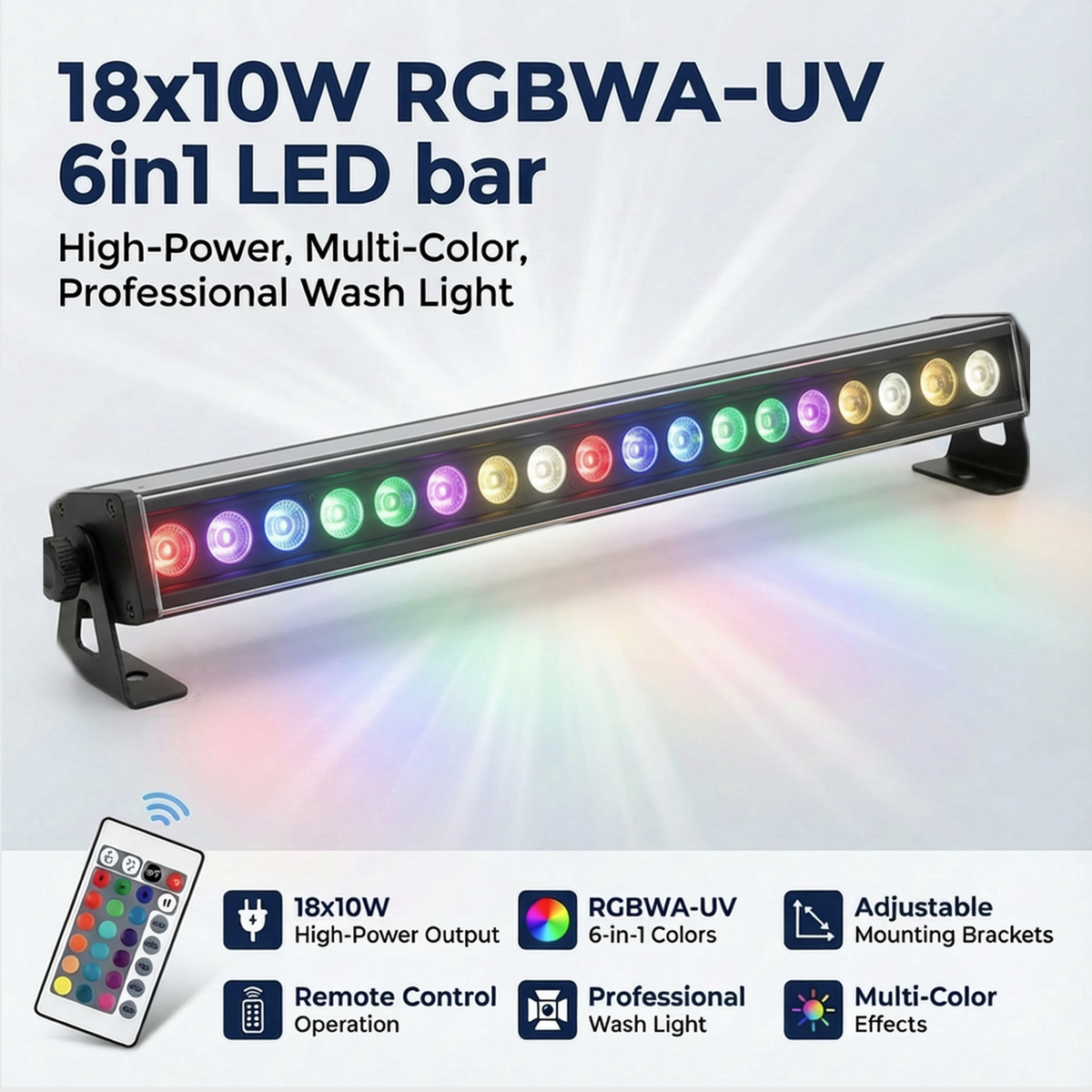

18x10W RGBWA-UV 6in1 LED
Various built-in programs
CONTROL
DMX chamel:12/110CH
DMX comector. DMX 3-Pin XLR input/output
Power comnector: : PowerCon input/output
Control mode:DMXMaster-SlavevAuto'Sound LEDdisplay
PHYSICAL
IP Rating:IP20
Housing color.:black
Ambient temperature:-20-0-45-C
Dimensions:990*140*150M139*5.5*5.9in
Weight:4.3kg/9.48lb

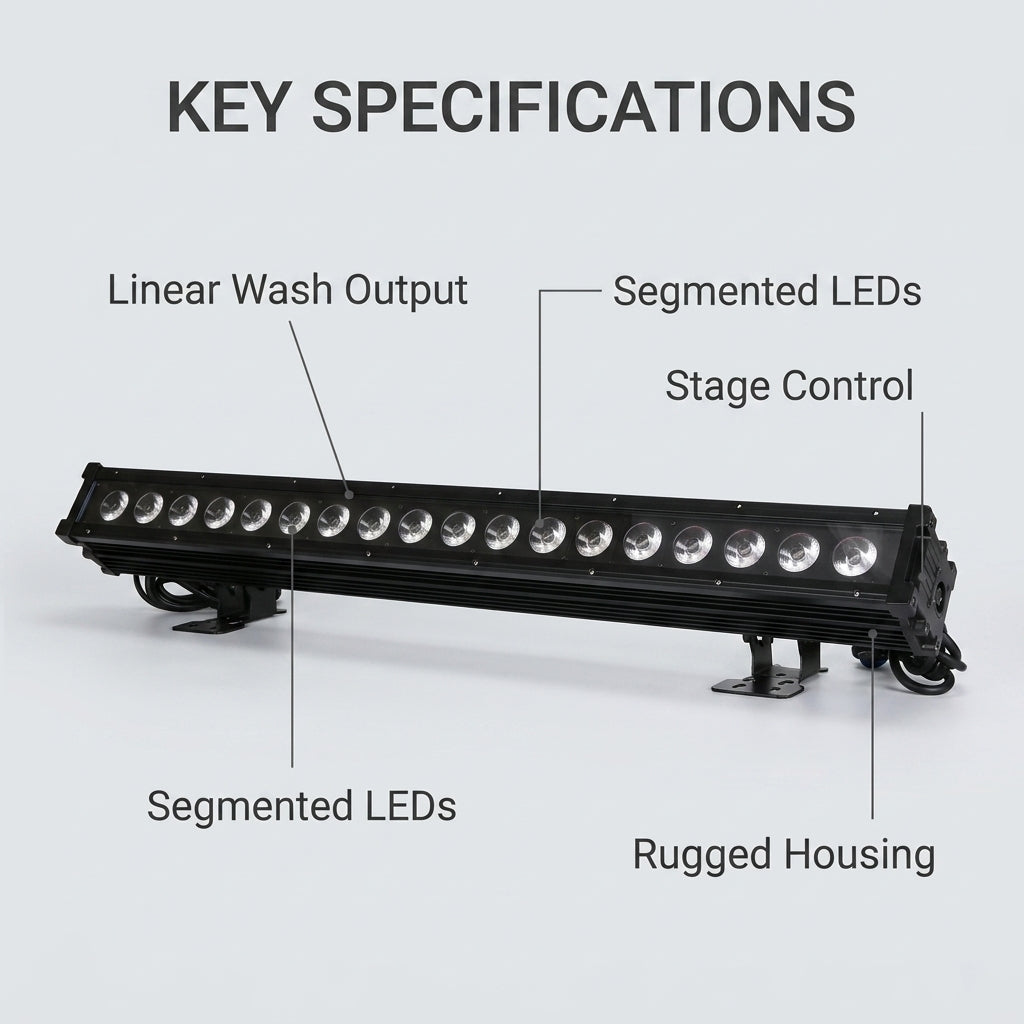

KEY SPECIFICATIONS
Reference information
- Brand
- XNK Lighting
