PRODUCT OVERVIEW

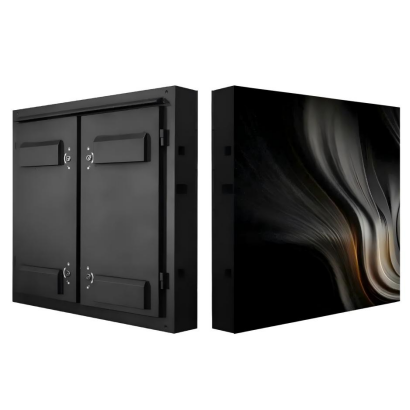

Outdoor LED Screen with P4 & P5 Pixel Pitch Options for Large-Scale Displays
Specification Outdoor Pixel Pitch P4 P5 LED Configuration（Kinglight) SMD1921 SMD2727 Module Resolution 64*32 80*40 64*32 Module Dimension（mm) 256*128 320*160 320*160 Scan Mode 1/8 1/10 1/8 Physical Density(dots/㎡) 62500 40000 Avg.Power Consumption 280w/㎡ 280w/㎡ MAX.Power Consumption 800w/㎡ 800w/㎡ Cabinet Size（mm） 960*960 960*960 ...
Share the model, quantity, application and destination for a focused response.
PRODUCT DETAILS
Built for a considered specification review.
|
Specification |
Outdoor |
|
|
Pixel Pitch |
P4 |
P5 |
|
LED Configuration（Kinglight) |
SMD1921 |
SMD2727 |
|
Module Resolution |
64*32 80*40 |
64*32 |
|
Module Dimension（mm) |
256*128 320*160 |
320*160 |
|
Scan Mode |
1/8 1/10 |
1/8 |
|
Physical Density(dots/㎡) |
62500 |
40000 |
|
Avg.Power Consumption |
280w/㎡ |
280w/㎡ |
|
MAX.Power Consumption |
800w/㎡ |
800w/㎡ |
|
Cabinet Size（mm） |
960*960 |
960*960 |
|
Refresh Rate |
1920/3840 |
1920/3840 |
|
Brightness（㎡） |
≥5500 |
≥5500 |
|
View Angle |
1200/1200(50% birghtness) |
1200/1200(50% birghtness) |
|
Working Temperature |
-20℃~60℃ |
-20℃~60℃ |
|
Input Voltage |
AC100~240V |
AC100~240V |
|
Life Span |
100,000hrs |
100,000hrs |
