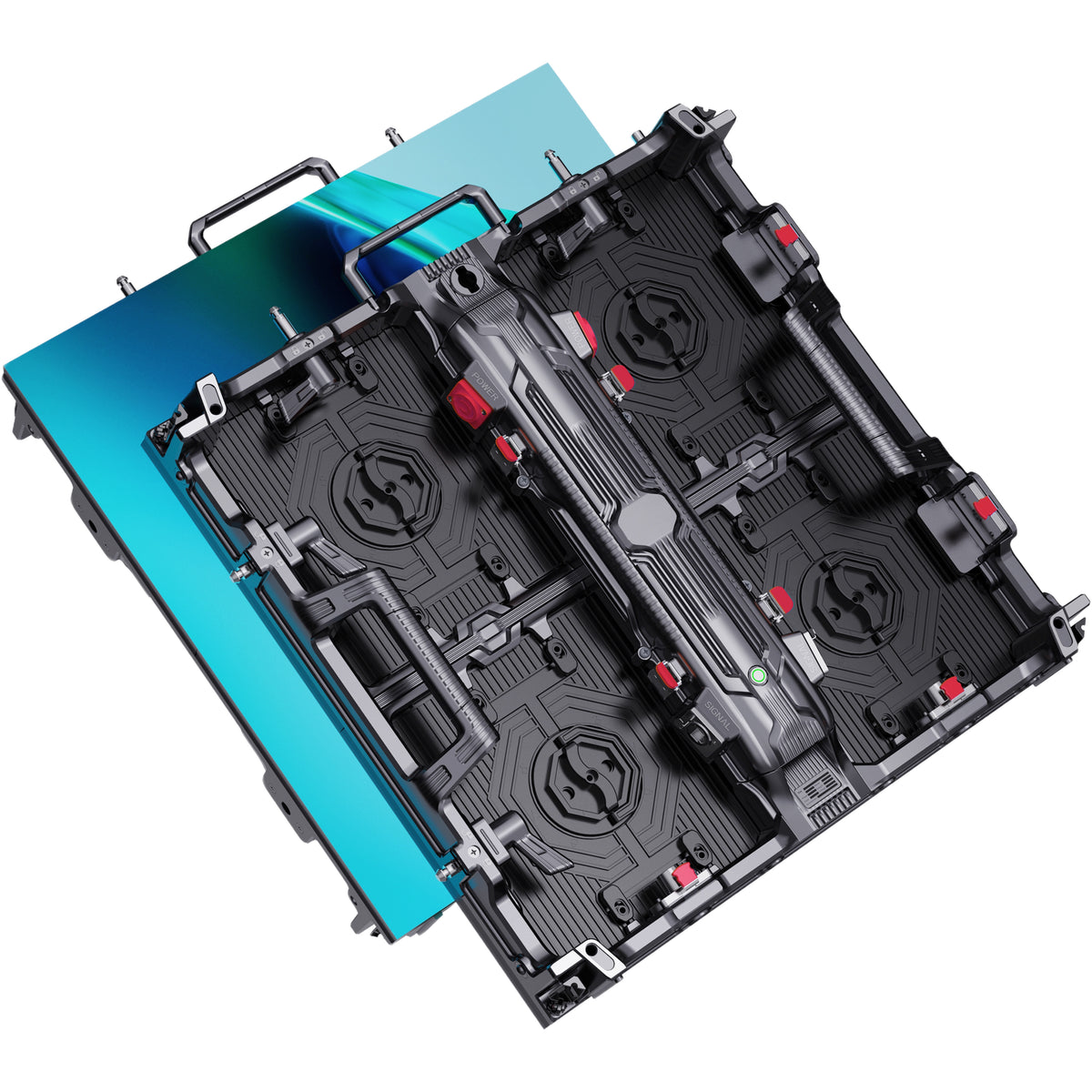

Outdoor P2.976 LED Display (500×500mm) – Hardwired Connection, Seamless Straight-Edge Design

Module Specifications

Pixel Configuration:
SMD1415 3-in-1 LED

Pixel Pitch (mm):
2.976

Module Resolution (W × H):
84 × 84 = 7056 pixels

Module Size (mm):
250 (W) × 250 (H)

Module Weight (kg):
0.7

Max Power Consumption (W):
≤ 42

Cabinet Specifications

Module Arrangement (W × H):
2 × 2

Cabinet Resolution:
168 × 168

Cabinet Size (mm):
500 × 500 × 87

Cabinet Area (m²):
0.25

Cabinet Weight (kg):
8.5

Pixel Density (dots/m²):
112,896

Cabinet Flatness (mm):
≤ 0.1

Maintenance Method:
Magnetic Front Service

Cabinet Material:
Die-cast Aluminum

Optical Parameters

Single Pixel Brightness Calibration:
None

Single Color Calibration:
None

White Balance Brightness (nits):
4400 – 4800

Color Temperature (K):
8000 – 12000

Viewing Angle (H/V):
160° / 120°

Electrical Parameters

Peak Power Consumption (W/m²):
580

Average Power Consumption (W/m²):
220 – 450

Power Supply:
200W × 1 PCS per cabinet

Input Voltage:
AC 100–220V

Current:
≤ 8A (single LED)

Performance

Frame Rate (Hz):
60

Driving Mode:
Constant Current Driving, 21 Scan

Grayscale:
16384

Refresh Rate (Hz):
7680

Video Compatibility:
2K HD, 4K Ultra HD

Operating Conditions

Lifespan:
100,000 hours

Operating Temperature / Humidity:
-10°C to 40°C / 10%–70% RH (non-condensing)

Storage Temperature / Humidity:
-20°C to 60°C / 10%–80% RH (non-condensing)
